Применение:	Регуляция /Welding/CNC	Особенности:	облегченное Cobot
Условие:	Новый	Гарантия:	1 год
Размер (LWH):	808060	Сила:	350
Напряжение тока:	200-240V	Применимые индустрии:	Гостиницы, магазины одежды, магазины строительного материала, промышленное предприятие, ремонтные ма
Вес (KG):	85	Положение выставочного зала:	Великобритания, Соединенные Штаты, Италия, Франция, Германия, Индия
Видео- общительн-осмотр:	Обеспеченный	Отчет по испытанию машинного оборудования:	Обеспеченный
Выходя на рынок тип:	Новый продукт 2021	Гарантия компонентов ядра:	1 год
Компоненты ядра:	Коробка передач, мотор	Название продукта:	робот 6 осей дешевый сотруднический для сваривать cobot
Контролируемые оси:	6	Максимальная полезная нагрузка:	10kg
Повторимость:	±0.1mm	Максимальный работая ряд:	1300mm
Температура:	0-50 ℃	Сила I/O:	24V 2A
Вес:	42,5 KG	Класс IP:	IP54
Порт:	Шанхай

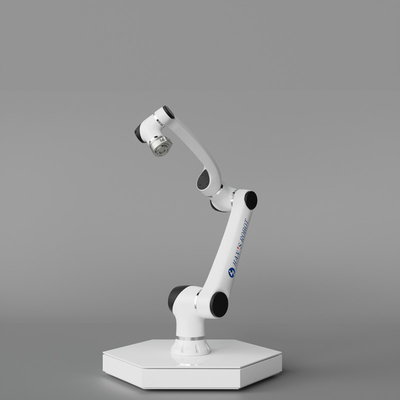

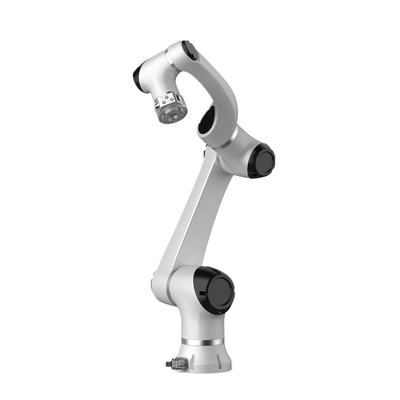

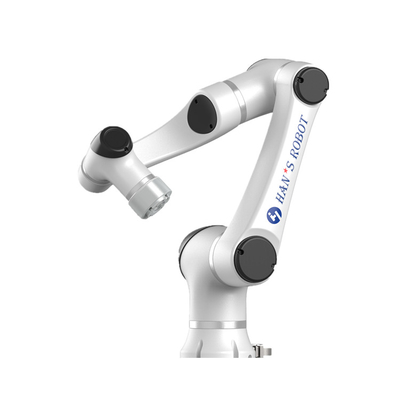

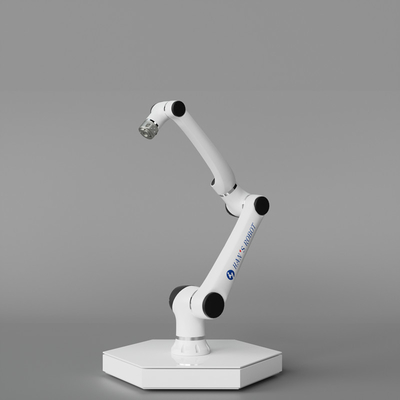

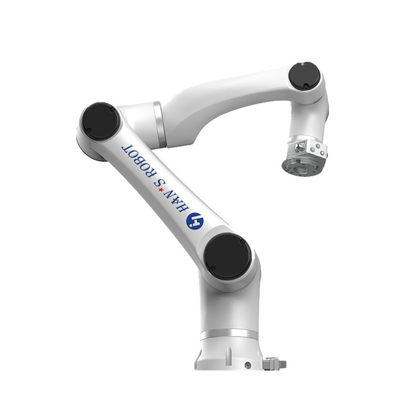

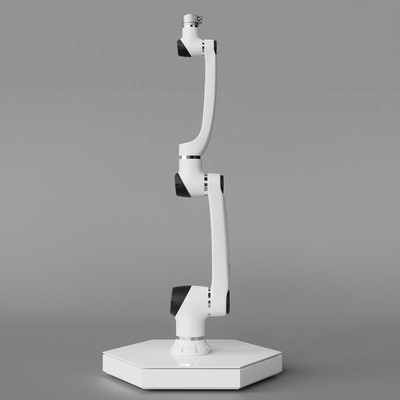

6 axis cheap collaborative robot Hans cobot Elfin E10L 10Kg payload and 1300mm working reach for cobot welding

Elfin Series Collaborative Robot

Features

Safer work
With Elfin robots, there is no need to pay extra for safe operation the same as traditional robots. The robots have high collaborative performance and can perform a protective stop immediately when they encounter resistance, ensuring the safety among co-worker, workpieces, and production equipment.
More Flexible Deployment
Elfin robots can be mounted at any angle and installed anywhere to minimize the impact on the production lines.Redeployment requires very short time and is very suitable for small batches, customized and short-cycle production, which is the best choice for automation transformation.
Easier Operation
Elfin robots can be easily teached by moving the end of the arm to the desired position or desired trajectory,which is greatly saves the programing time. 10 minutes is absolutely enough for building one simple pick and place program.
Fast, Stable Ether CAT bus communication
The controller and robot joint adopt industrial EtherCAT communication, which enables the system to have excellent control performance and strong an-interference ability.

Product Description

Product Name	6 axis cheap collaborative robot Hans cobot Elfin E10L 10Kg payload and 1300mm working reach for cobot welding
Weight	42.5kg
Payload	10kg
reach	1300mm
power	100W in typical cycle
joint range	±360°
joint speed	J1-J4 180°/S J5-J6 200°/S
tool speed	2m/s
repeatability	±0.05mm/±0.03mm(under normal conditions)
degree of freedom	6
control box size	536445319mm
end I/O port	digital input:3,digital output:3,analog input:2
control box I/O port	digital input:16,digital output:16, analog input:2,analog output:2
I/O source	24V 2A
communication	TCP/IP/MODBUS
programming	graphical programming,remote process call
IP classification	IP54/IP66
collaborative operation	10 advanced configurations for safety
main material	aluminum alloy
working temperature	0-50℃
power input	200-240V AC,50-60Hz
cable	cable to connect the control box:5m,cable to connect teach pendant:

6 axis cheap collaborative robot Hans cobot Elfin E10L 10Kg payload and 1300mm working reach for cobot welding 0

Hans Robot EIfin10L Introduction:

Elfin robot is a new type of human-machine collaborative six-axis robot. Its overall design is lightweight, modular, compact and beautiful, and it can flexibly accommodate to all kinds of complicated and varying industrial production environments.

Robot Working Space

The working space of robot refers to the area within 1300 mm around the joint of robot base. When selecting the location to install robot, considerations should be given to the cylinder space above and below the robot. Please try to keep the tool away from the cylindrical space as much as possible, otherwise it will cause the situation where the tool moves slowly and joints move too fast, which leads to the low efficiency of robot and difficult risk assessment. The max payload of EIfin10L is 10kg, and max reach is 1300mm. It is suitable in various of circumstances. We can use it to do the picking, spray painting, spot welding and etc.

Our Services

1.Swift delivery
For common parts, we can deliver the goods within 3 days

2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.

тег:

Место происхождения:	Гуандун, Китай
Фирменное наименование:	Han's / Hans
Сертификация:	CE

Цена:	$18,000.00/Sets >=1 Sets
Упаковывая детали:	Одна 6 cobot Elfin E10L 10Kg Hans робота оси полезная нагрузка дешевого сотруднического и достигаемо
Поставка способности:	1 часть/часть в Месяц
