TopWorx PD Series Smart Valve Positioner
Product Overview

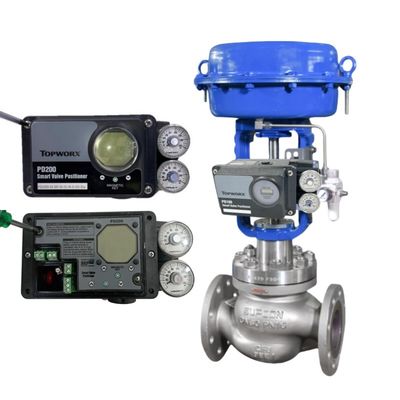

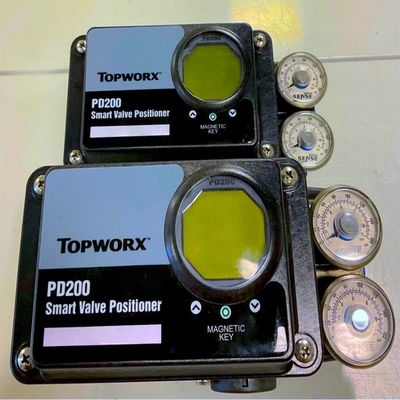

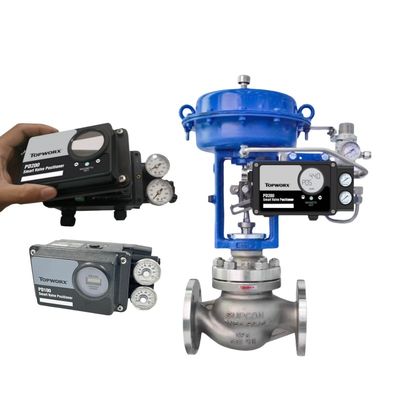

The TopWorx PD Series Smart Valve Positioner, featuring the PD100 and PD200 models, redefines valve automation with user-friendly operation and advanced diagnostic capabilities. Engineered with non-contacting Hall-effect sensors, these positioners ensure wear-free performance and precise valve positioning for both linear and rotary actuators. The PD100 delivers reliable 4-20 mA control, while the PD200 enhances functionality with HART communication for real-time diagnostics and predictive maintenance. With a robust IP66/Type 4X enclosure and certifications for hazardous areas (ATEX, IECEx, cULus), the PD Series is a versatile choice for oil and gas, chemical, and wastewater applications, streamlining operations and reducing downtime.
Key Features
- Smart Diagnostics: PD200’s HART protocol enables real-time valve health monitoring and predictive maintenance.

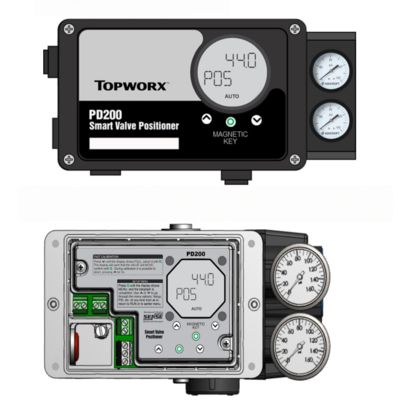

- User-Friendly Interface: LCD display and push-button/magnetic key controls simplify setup and operation.
- Non-Contacting Sensors: Hall-effect technology ensures long-lasting, maintenance-free performance.
- Rapid Calibration: Auto-calibration via mechanical or magnetic buttons for quick commissioning.
- Energy Efficiency: Low air consumption (0.31 scfm at 60 psi) reduces operational costs.
- Broad Actuator Support: Compatible with linear (12–200 mm) and rotary (0–120°) actuators, single or double-acting.
- Hazardous Area Ready: Certified for ATEX, IECEx, and cULus (intrinsically safe for PD200).
- Durable Construction: IP66/Type 4X enclosure withstands harsh industrial environments.
- Configurable Alarms (PD200): Two PNP alarms for comprehensive valve status monitoring.
- Flexible Mounting: Compact design allows installation at any angle for space-constrained setups.
Technical Specifications
| Parameter | PD100 | PD200 |
|---|
| Communications Protocol | 4-20 mA (nominal) | HART Capable |
| Minimum Voltage | 8.5 VDC (analog control) | 8.5 VDC (analog), 9.0 VDC (HART) |
| Overvoltage | 36 VDC | 36 VDC |
| Voltage Drop | 12.2 VDC @ 4mA/24 VDC | 12.2 VDC @ 4mA/24 VDC |
| Input Impedance | 470 ohms @ 20mA/24 VDC | 470 ohms @ 20mA/24 VDC |
| Output Impedance (Feedback) | 800 ohms @ 20mA/24 VDC | 800 ohms @ 20mA/24 VDC |
| Actuator Signal | 0% to 100% of supply pressure | 0% to 100% of supply pressure |
| Response Time | ≥ 0.3% of Full Scale | ≥ 0.3% of Full Scale |
| Stroke Range | Linear: 12–200 mm; Rotary: 0–120° | Linear: 12–200 mm; Rotary: 0–120° |
| Hysteresis | 1.5% of Full Scale | 1.5% of Full Scale |
| Repeatability | 1.5% of Full Scale | 1.5% of Full Scale |
| Linearity | 0.8% of Full Scale | 0.8% of Full Scale |
| Temperature Range | -40°C to +65°C (-40°F to +149°F) | -40°C to +75°C (-40°F to +167°F) |
| Electrical Connection | 1/2" NPT female | 1/2" NPT female |
| Pneumatic Connection | 1/4" NPT female (Inlet & Outlet) | 1/4" NPT female (Inlet & Outlet) |
| Air-Supply Pressure | 2.8–8 bar (40–116 psi) | 2.8–8 bar (40–116 psi) |
| Output Air Consumption | 8.81 l/m @ 60 psi (0.31 scfm) | 8.81 l/m @ 60 psi (0.31 scfm) |
| Display Type | LCD, 4 numeric digits | LCD, 4.5 numeric digits, 6 alphanumeric digits |
| Local Controls | 3 mechanical buttons (Up, Down, Enter) | 3 mechanical & 3 magnetic buttons (includes magnetic key) |
| Certifications | cULus (General Purpose, Non-Incendive), ATEX/IECEx, CE | cULus (General Purpose, Intrinsically Safe), ATEX/IECEx, CE |
Applications
The TopWorx PD Series Smart Valve Positioner is designed for efficient valve automation across diverse industries:
- Oil and Gas: Precise valve control in upstream and downstream operations.
- Chemical Processing: Reliable flow management for corrosive and hazardous fluids.
- Wastewater Treatment: Accurate valve positioning in water purification and sludge handling.
- Power Generation: Controls steam and cooling water valves for optimal plant efficiency.
- Food and Beverage: Ensures hygienic valve operation in processing and bottling systems.
Frequently Asked Questions
How does the PD Series support predictive maintenance?
The PD200’s HART protocol and configurable PNP alarms provide real-time valve health data to prevent failures.
What makes the PD Series user-friendly?
Its LCD interface and push-button/magnetic key controls enable easy calibration and monitoring without cover removal.
Can the PD Series operate in extreme environments?
Yes, with an IP66/Type 4X enclosure and a temperature range down to -40°C, it’s built for harsh conditions.
What is the benefit of non-contacting sensors?
Hall-effect sensors eliminate mechanical wear, ensuring long-term reliability and reduced maintenance.
How quickly can the PD Series be commissioned?
Auto-calibration via push-button or magnetic key allows setup in minutes, streamlining installation.
