EMERSON Rosemount 5300/5408/5900C 5900S Radar Level Gauge Non-Contacting Radar Level Measurement

1
MOQ
1536-1836$
цена
EMERSON Rosemount 5300/5408/5900C 5900S Radar Level Gauge Non-Contacting Radar Level Measurement
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Диапазон давления: До 40 бар
Контрольный сигнал: 4-20mA/0-10V
Условное: Новый
Тип соединения: Фланце, нить
Поддержка протокола: Hart, Foundation Fieldbus, Profibus pa
производитель: Различные производители
Приложение: Промышленные процессы
Источник питания: Переменное или постоянное
Основная информация
Место происхождения: Шанхай
Фирменное наименование: Rosemount
Сертификация: QC
Номер модели: 5408
Оплата и доставка Условия
Упаковывая детали: Деревянная коробка/коробка коробка
Время доставки: 8WEEKS
Условия оплаты: Exw
Поставка способности: 300 шт./Месяц
Характер продукции
Product Overview

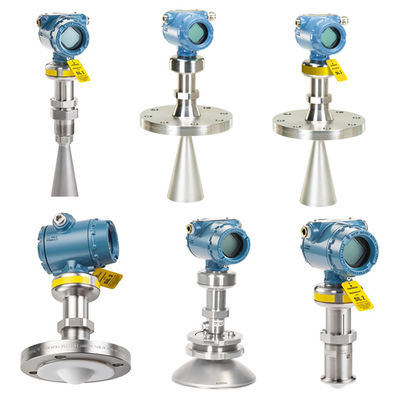

The Rosemount 5300, 5408, 5900C, and 5900S Radar Level Transmitters are Emerson’s cutting-edge solutions for precise level measurement across industries. Designed to handle liquids, slurries, and solids, these transmitters use either guided wave radar (GWR) or non-contacting radar (FMCW) technologies to ensure accuracy and reliability in even the harshest environments.

  • The Rosemount 5300 Series uses guided wave radar technology for challenging process conditions.
  • The Rosemount 5408 offers 26 GHz FMCW non-contact radar for liquids and solids, with a SIL 2 SIS-certified version.
  • The Rosemount 5900C is a high-performance tank radar for custody transfer and inventory management.
  • The Rosemount 5900S represents Emerson’s most advanced tank gauging radar, ensuring world-class accuracy for large storage tanks.
Features
  • Guided wave radar (5300) and FMCW non-contact radar (5408, 5900C, 5900S) technologies
  • SIL 2 certification available for safety-critical applications
  • High accuracy, ±2 mm for 5300/5408 and down to ±0.5 mm for 5900C/5900S
  • Reliable operation under vapor, foam, dust, or turbulence
  • Proven performance in custody transfer and tank gauging
  • Robust design with minimal maintenance requirements
  • Integration with Emerson’s PlantWeb digital ecosystem
Technical Specifications
Model Technology Measuring Range Accuracy Frequency Certification Key Applications
Rosemount 5300 Guided Wave Radar Liquids/solids up to 60 m ±3 mm GWR SIL 2 Process vessels, harsh media
Rosemount 5408 FMCW Non-Contact Liquids 40 m, solids 30 m ±2 mm 26 GHz SIL 2 (SIS version) Liquids, solids, safety systems
Rosemount 5900C FMCW Non-Contact Large tanks, up to 40 m ±0.5 mm 10 GHz Custody Transfer Tank gauging, inventory
Rosemount 5900S FMCW Non-Contact Storage tanks, up to 40 m ±0.5 mm 10 GHz Custody Transfer High-accuracy tank gauging
Applications
  • Oil and gas storage and custody transfer
  • Petrochemical and chemical process tanks
  • Power plant and boiler drum monitoring
  • Food and beverage production tanks
  • Mining and bulk solids silos
  • Water and wastewater facilities
  • Safety instrumented systems requiring SIL-certified radar
FAQ

Q1: What is the main difference between Rosemount 5300 and 5408?
A1: The 5300 is a guided wave radar (GWR) transmitter ideal for challenging liquid and slurry applications, while the 5408 is a non-contact FMCW radar for liquids and solids, also available in a SIL 2 certified SIS version.

Q2: Why choose the 5900C or 5900S over other radar transmitters?
A2: The 5900C and 5900S are designed for custody transfer and high-accuracy tank gauging, delivering accuracy down to ±0.5 mm for large storage tanks.

Q3: Can these transmitters handle vapor, foam, or dust?
A3: Yes, both guided wave and FMCW radar technologies are unaffected by vapor, dust, turbulence, or condensation.

Q4: Which models are SIL certified for safety applications?
A4: The Rosemount 5300 and the Rosemount 5408 SIS are SIL 2 certified for safety instrumented systems.
