Rosemount 5408 and 5408 SIS Level Transmitters Emerson radar Level Transmitter SIS

1
MOQ
1536-1836$
цена
Rosemount 5408 and 5408 SIS Level Transmitters Emerson radar Level Transmitter SIS
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Диапазон давления: До 40 бар
Контрольный сигнал: 4-20mA/0-10V
Условное: Новый
Тип соединения: Фланце, нить
Поддержка протокола: Hart, Foundation Fieldbus, Profibus pa
производитель: Различные производители
Приложение: Промышленные процессы
Источник питания: Переменное или постоянное
Основная информация
Место происхождения: Шанхай
Фирменное наименование: Rosemount
Сертификация: QC
Номер модели: 5408
Оплата и доставка Условия
Упаковывая детали: Деревянная коробка/коробка коробка
Время доставки: 8WEEKS
Условия оплаты: Exw
Поставка способности: 300 шт./Месяц
Характер продукции
Product Overview

The Rosemount 5408 and 5408 SIS Non-Contacting Radar Level Transmitters are advanced solutions for continuous level measurement in liquid and solid applications. Built on 26 GHz FMCW radar technology, these transmitters ensure high accuracy, reliability, and long-term stability even under harsh conditions such as vapor, foam, turbulence, or dust.

The 5408 SIS version is specifically designed for Safety Instrumented Systems (SIS), with SIL 2 certification, making it ideal for safety-critical processes where reliability and compliance are essential.

Features
  • FMCW 26 GHz radar technology for superior measurement accuracy
  • Non-contacting design eliminates mechanical wear and reduces maintenance
  • SIL 2 certified (5408 SIS) for use in safety instrumented systems
  • Diagnostics via HART or Modbus for predictive maintenance
  • Resistant to process conditions like condensation, dust, or vapor

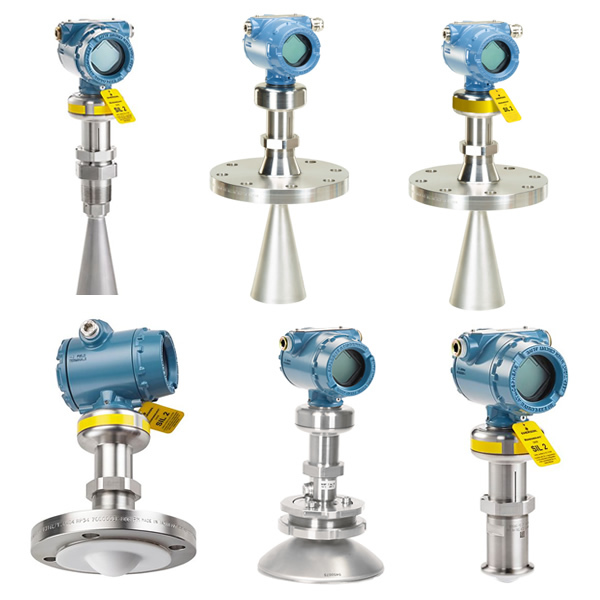

  • Wide range of enclosure and antenna materials for various industries
  • Intuitive configuration and integration with Emerson tools
Technical Specifications
  • Measurement Technology: FMCW non-contact radar
  • Frequency: 26 GHz
  • Measuring Range:
    • Liquids: up to 40 m (131 ft)
    • Solids: up to 30 m (98 ft)
  • Accuracy: ±2 mm
  • Output Options: 4–20 mA with HART or Modbus
  • Process Temperature Range: -40 °C to +200 °C (-40 °F to +392 °F)
  • Process Pressure Range: -1 bar to +25 bar (-14.5 psi to +360 psi)
  • Safety Certification: SIL 2 (5408 SIS)
  • Enclosure Materials: Aluminum or stainless steel
  • Certifications: ATEX, FM, IECEx, SIL
Applications
  • Oil and gas storage tanks and safety-critical systems
  • Chemical and petrochemical process vessels
  • Power plants and boiler drum level monitoring
  • Water and wastewater treatment facilities
  • Food and beverage production
  • Mining and bulk solids silos
FAQ

Q1: What is the difference between Rosemount 5408 and 5408 SIS?
A1: The standard 5408 provides advanced radar level measurement, while the 5408 SIS is SIL 2 certified for integration into safety instrumented systems.

Q2: Can these transmitters work in extreme conditions like vapor or dust?
A2: Yes, the FMCW radar technology is unaffected by vapor, foam, condensation, or dust.

Q3: Is the 5408 SIS suitable for overfill prevention applications?
A3: Yes, with SIL 2 certification, it is designed for use in overfill prevention and other critical safety applications.

Q4: How is maintenance reduced with these transmitters?
A4: The non-contact radar design has no moving parts, ensuring virtually maintenance-free operation.
