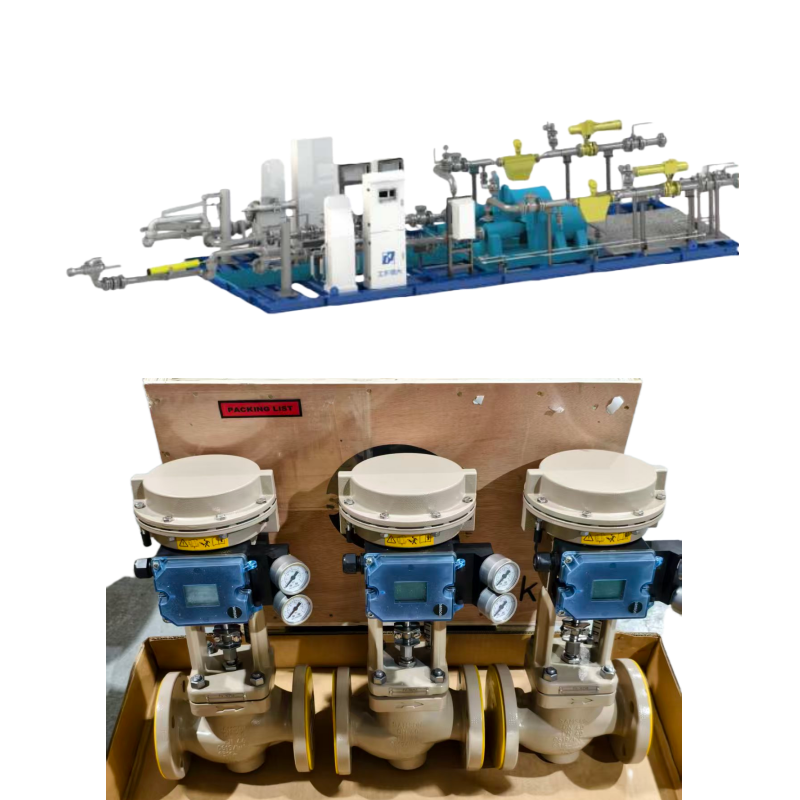

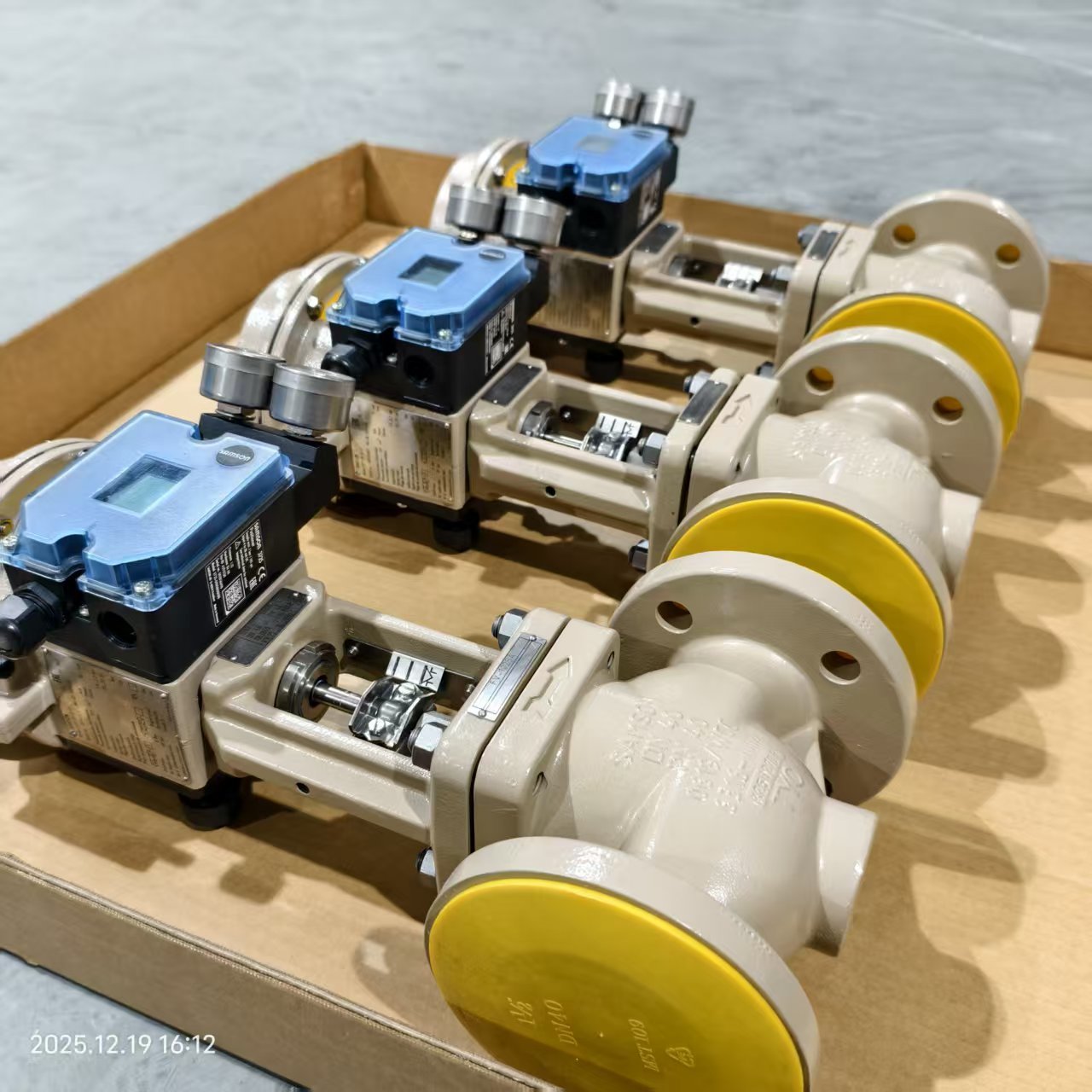

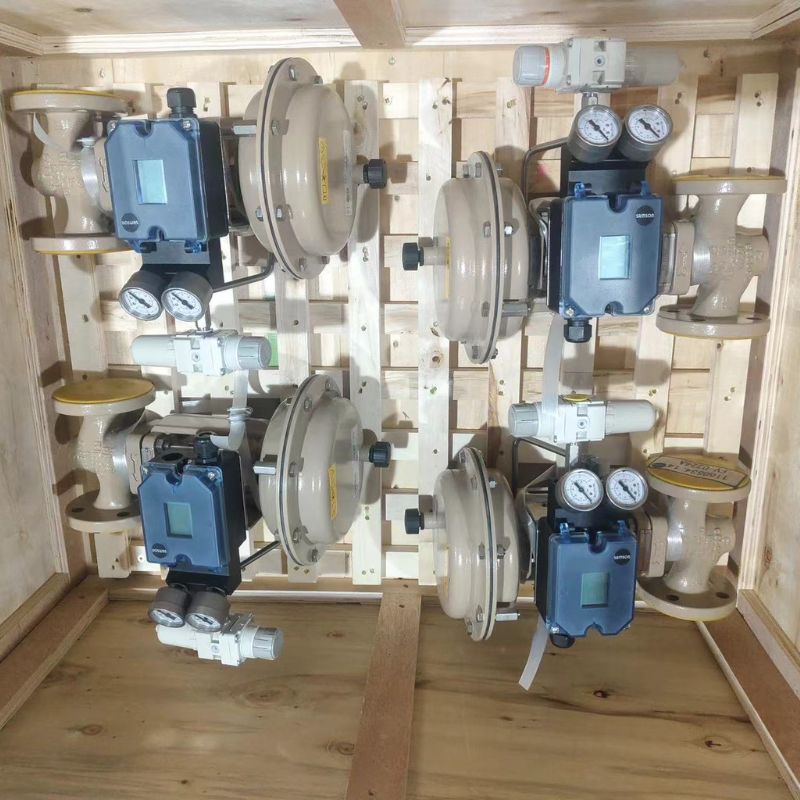

Samson 3241 Globe Control Valve Body Pneumatic Actuator 3277 Valve Positioner 3725

The Samson 3241 Globe Control Valve is a high-performance linear control valve designed for precise regulation of flow, pressure, and temperature in industrial process control systems. It is widely used in combination with Samson pneumatic actuators such as the Samson 3277 to form a reliable and efficient control valve assembly.

The 3241 valve features a robust globe-style body, offering excellent throttling performance, high control accuracy, and stable operation over a wide range of process conditions. With flexible material selection and trim configurations, the Samson 3241 is suitable for liquid, gas, and steam services in demanding industrial environments.

• Linear globe control valve for precise flow regulation
• Excellent throttling and control accuracy
• Robust valve body for long service life
• Wide range of body and trim materials
• Compatible with pneumatic and electric actuators
• Supports smart and analog valve positioners
• High rangeability and stable control behavior
• Reliable shutoff performance
• Easy maintenance with modular internal components
• Designed for continuous industrial operation

Valve type

Linear globe control valve

Body materials

Cast iron

Carbon steel

Stainless steel

Alloy steel

Nominal size

Available in multiple DN and NPS sizes

Pressure rating

PN and ANSI Class options depending on configuration

Flow characteristics

Equal percentage

Linear

Trim materials

Stainless steel

Hardened materials for severe service

End connections

Flanged

Welded

Actuator compatibility

Samson pneumatic diaphragm actuators

Electric actuators

Positioner compatibility

Samson digital and electropneumatic valve positioners

Temperature range

Suitable for standard and high-temperature applications

• Flow control in chemical and petrochemical plants
• Steam and condensate control in power generation
• Oil and gas processing facilities
• Water and wastewater treatment systems
• Heating, ventilation, and district energy systems
• General industrial process control

• Provides accurate and stable process control
• Ensures long-term reliability and durability
• Flexible configuration for various media and conditions
• Easy integration into automated control systems
• Reduces maintenance and operational downtime
• Supports precise control in critical applications

The Samson 3241 globe control valve regulates process flow by moving a linear plug within the valve body. As the actuator responds to the control signal, the valve stem moves the plug relative to the seat, adjusting the flow area. When equipped with a valve positioner, the valve achieves precise positioning, fast response, and consistent control performance.

• Install the valve according to flow direction marking
• Mount the actuator and valve positioner
• Connect control signal and instrument air supply
• Perform calibration and stroke testing
• Verify valve operation under process conditions

• Samson 3277 Pneumatic Diaphragm Actuator
• Samson 3730-3 Smart Valve Positioner

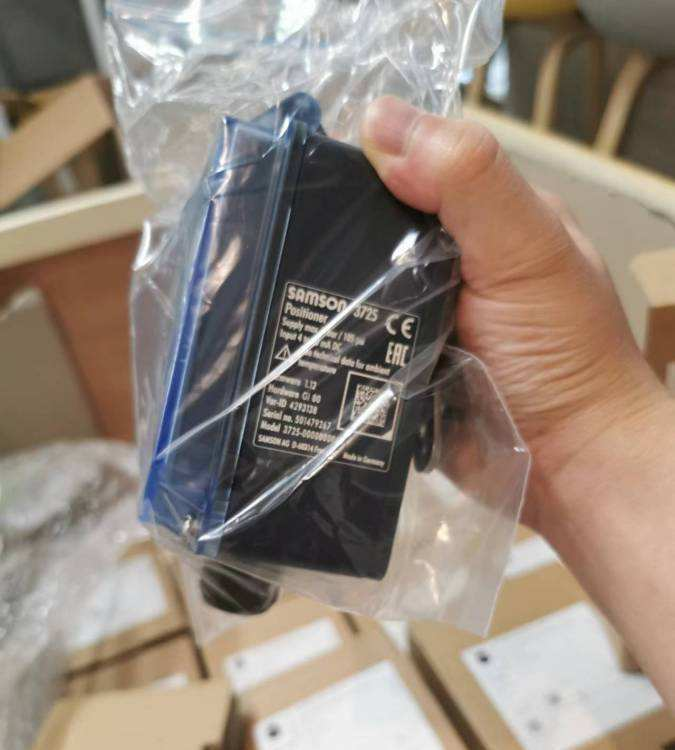

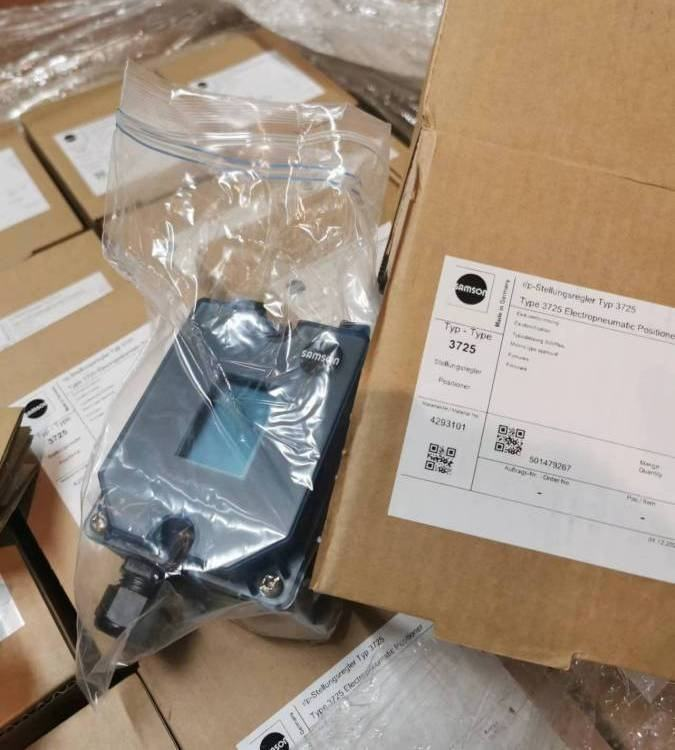

• Samson 3725 Electropneumatic Valve Positioner
