Flowserve Logix 3800 3800E Digital Valve Positioner Flowserve Stock Supplier

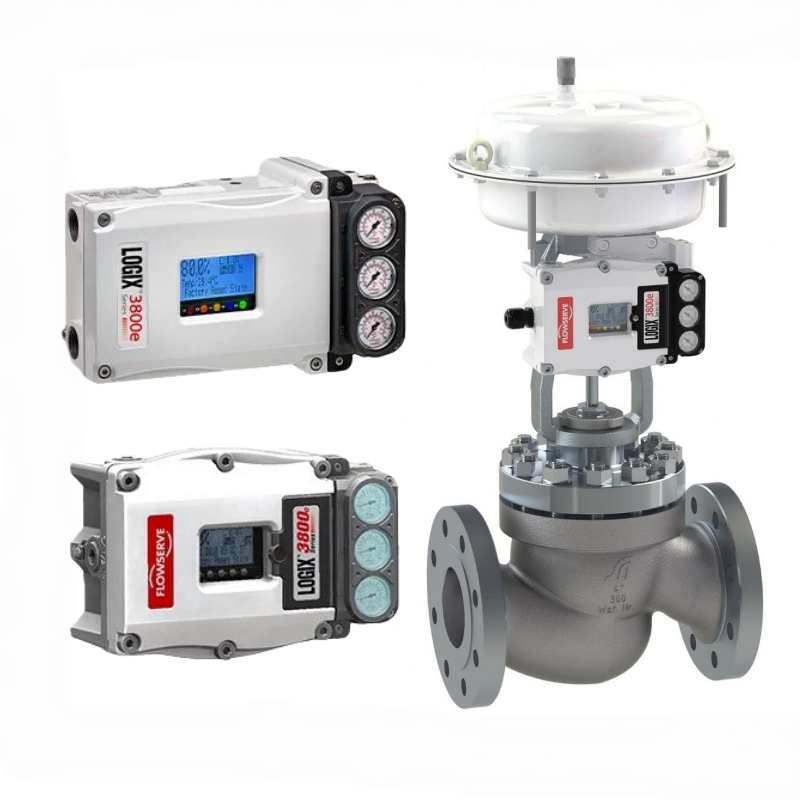

The Flowserve Logix 3800E Digital Valve Positioner is an advanced smart positioner designed to deliver precise, reliable, and repeatable control of pneumatic control valves in industrial automation systems. Part of the Logix 3800 family, the 3800E model incorporates enhanced digital control algorithms and diagnostic capabilities that improve valve performance, reduce maintenance, and help optimize process control.

The Logix 3800E supports both linear and rotary actuators and integrates seamlessly with a wide range of control systems through analog 4–20 mA and digital communication protocols. It is ideal for industries including oil and gas, chemical processing, power generation, water treatment, and general manufacturing where accurate valve positioning and reliable system feedback are critical.

• High-precision digital valve positioning
• Compatibility with linear and rotary pneumatic actuators
• Enhanced diagnostic functions for valve and actuator health
• Supports 4–20 mA control inputs with digital feedback
• HART communication for remote configuration and monitoring
• Fast response and stable valve control under varying process conditions
• Low air consumption and efficient actuator control
• Rugged industrial housing for demanding environments
• Easy installation and auto-calibration for quick commissioning
• Improved reliability for continuous automated operations

• Automated control valve positioning in oil and gas production lines
• Flow, pressure, and level control in chemical and petrochemical plants
• Steam and utility control in power generation facilities
• Water and wastewater treatment process automation
• Material handling and fluid regulation in manufacturing systems
• Retrofit projects to upgrade older analog positioners

• Improves valve positioning precision and repeatability
• Enhances process stability and reduces variability
• Reduces maintenance with insightful diagnostics
• Supports predictive maintenance strategies
• Simplifies commissioning and reduces setup time
• Enables remote configuration and monitoring with HART
• Reliable performance in harsh industrial environments

1. The Logix 3800E digital valve positioner receives a 4–20 mA signal from the control system.
2. Internal electronics compare the input signal with valve position feedback and adjust pneumatic output to the actuator accordingly.
3. The digital control loop ensures fast and accurate valve movement, optimizing valve travel and reducing overshoot.
4. Using HART communication, the positioner provides remote access to configuration, diagnostics, and performance data for enhanced automation workflows.

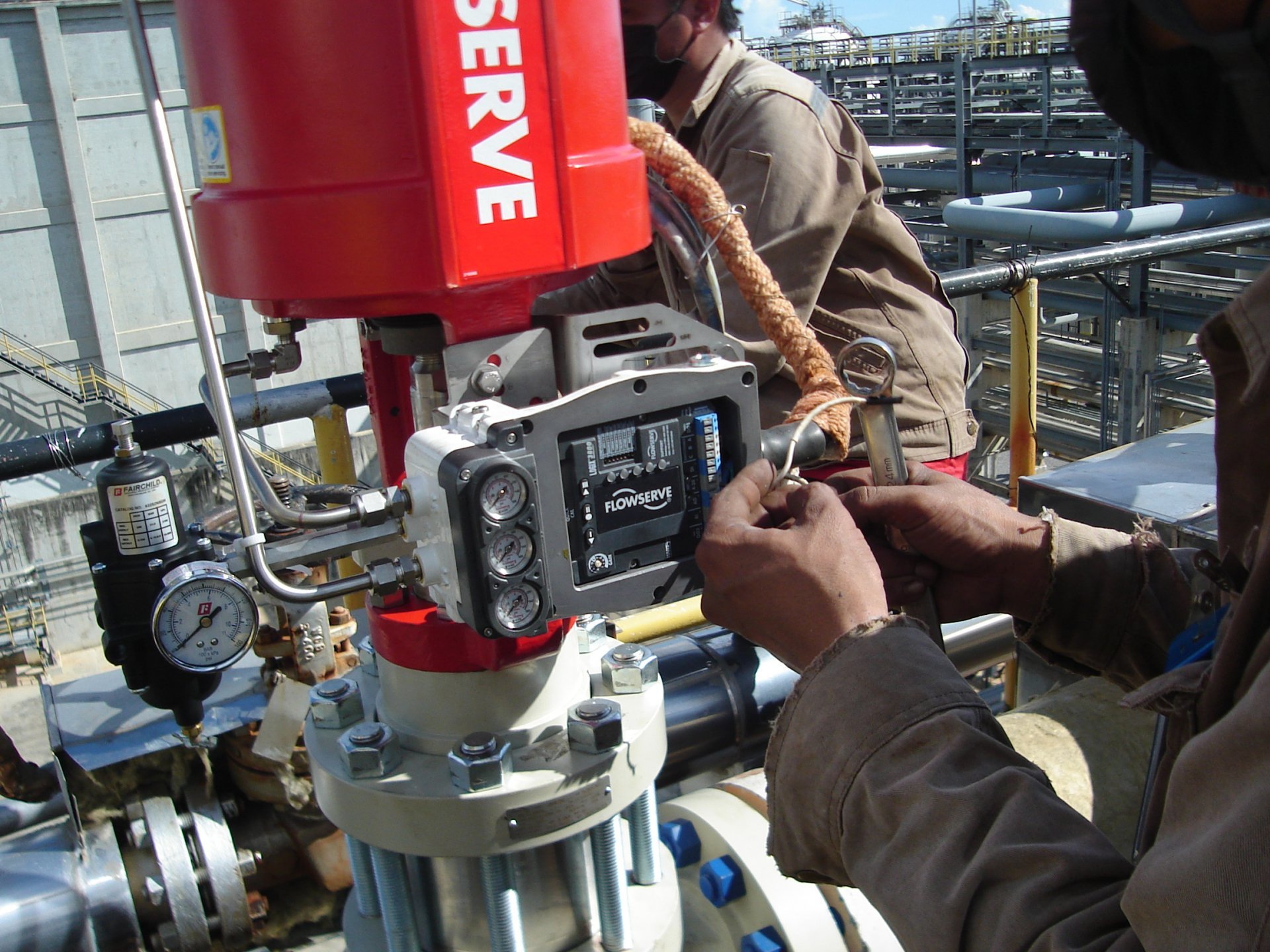

1. Mount the Logix 3800E to the control valve actuator using a NAMUR interface
2. Connect the pneumatic air supply and appropriate tubing
3. Wire the 4–20 mA control signal and HART communication line
4. Perform auto-calibration for valve travel and travel limits
5. Verify positioner response and system integration under process conditions
